Part No.: SD.IS120-1223-000

MIS120P Industrial 6 Gigabit Ports Managed PoE Switch

Altai MIS120P is an industrial-grade managed switch featuring four 1GbE PoE ports, and two 100/1000BASE-X SFP slots. The switch, with a rugged IP40 metal case and an ultra-wide temperature range from -40°C to 80°C, is designed to operate in harsh industrial environments such as factory, warehouse, and container port.

MIS120P

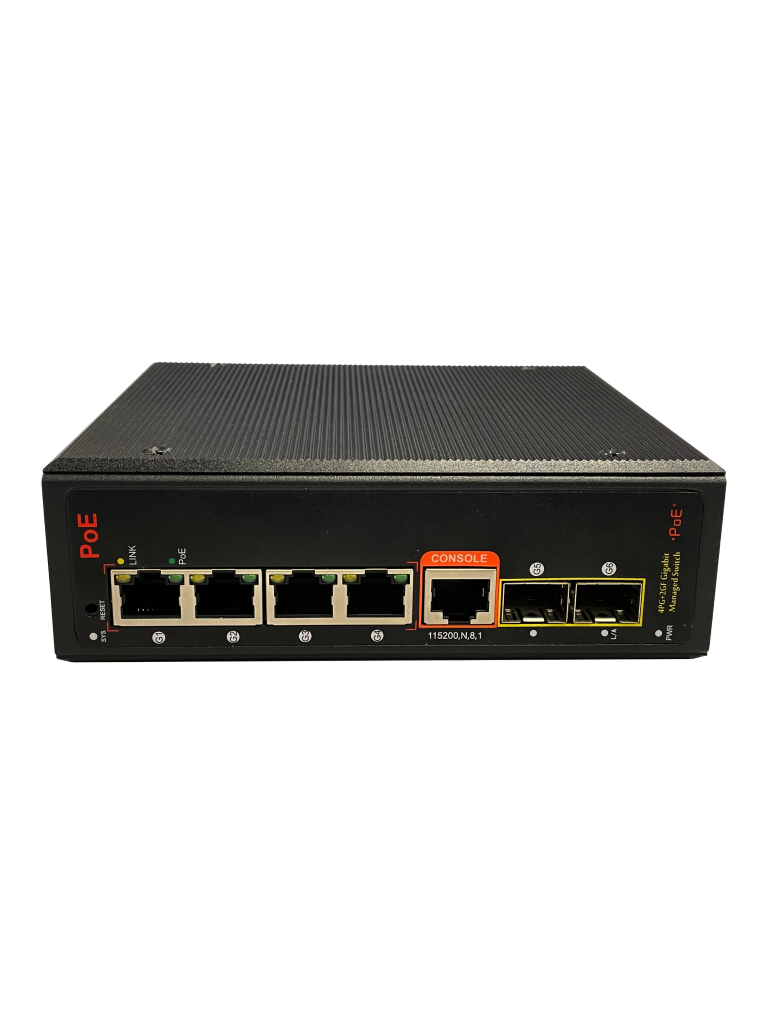

MIS120P_Front2

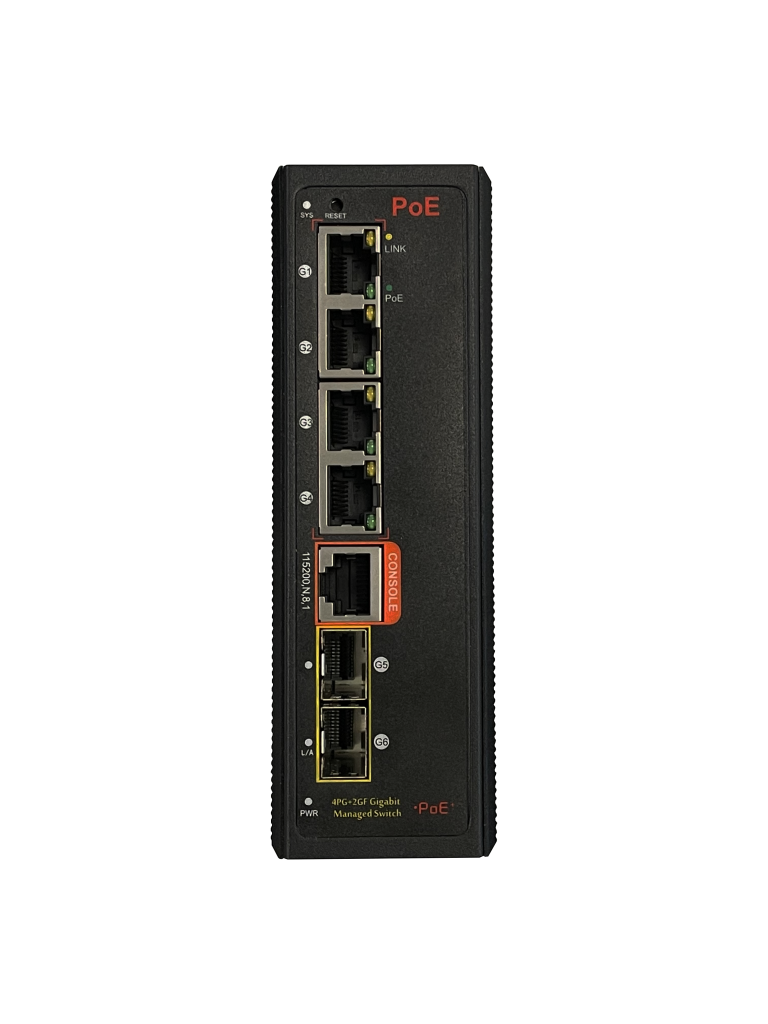

MIS120P_Front

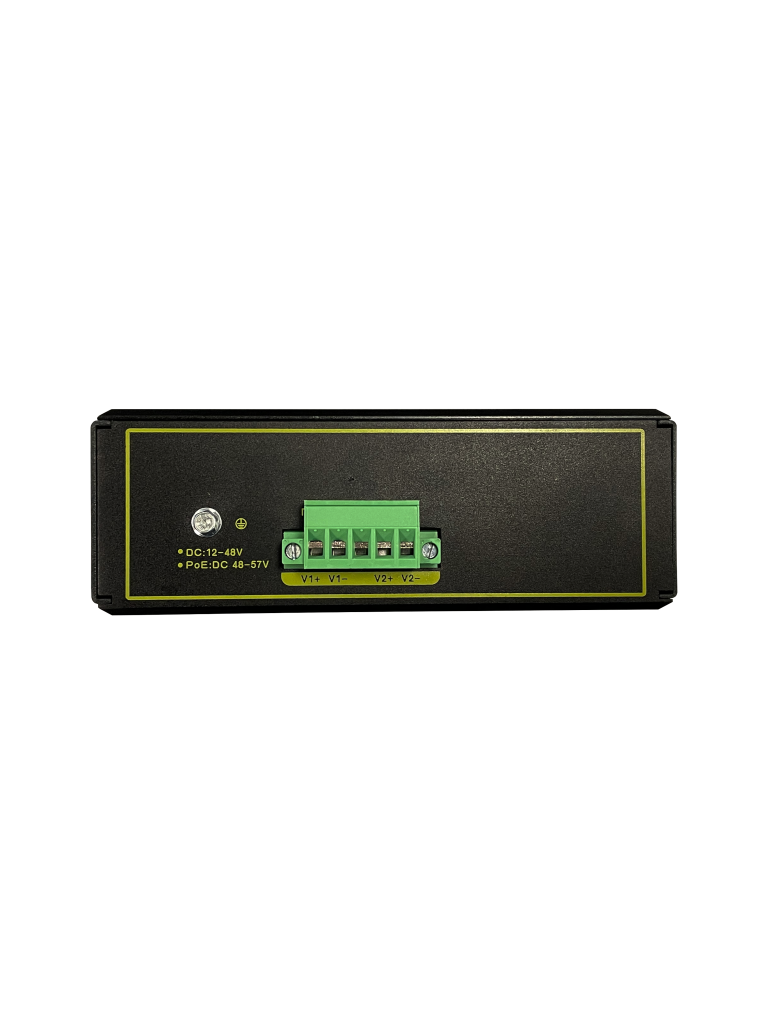

MIS120P_Top

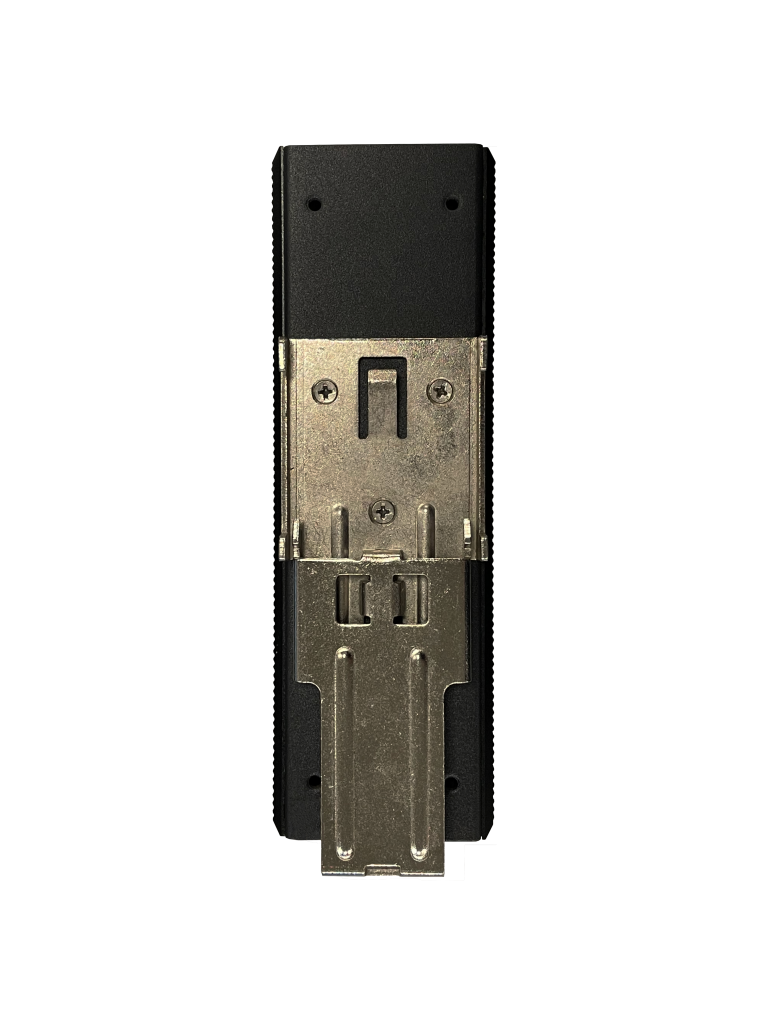

MIS120P_Back
MIS120P Industrial 6 Gigabit Ports Managed PoE Switch Data Sheet

Highlights:

  • Four 10/100/1000 BASE-T PoE ports
  • Two 100/1000 BASE-X SFP slots
  • IP40 aluminum case
  • 48 – 57 VDC redundant power with polarity reverse protection
  • 4 kV power and data port surge protection
  • 8 kV Ethernet ESD protection
  • Support ERPS redundant ring technology with recovery time as low as 20 ms
  • DIN rail mount
  • Support STP/RSTP/MSTP
  • Support up to 255 VLAN groups and 4094 VLAN IDs
  • Support IGMP snooping v1/v2
  • Support RADIUS user access authentication
  • Support SSH, SSL, and SNMP v1/v2/v3 management
  • Support status monitoring by AltaiGate or AltaiCare On Premises virtual appliance
